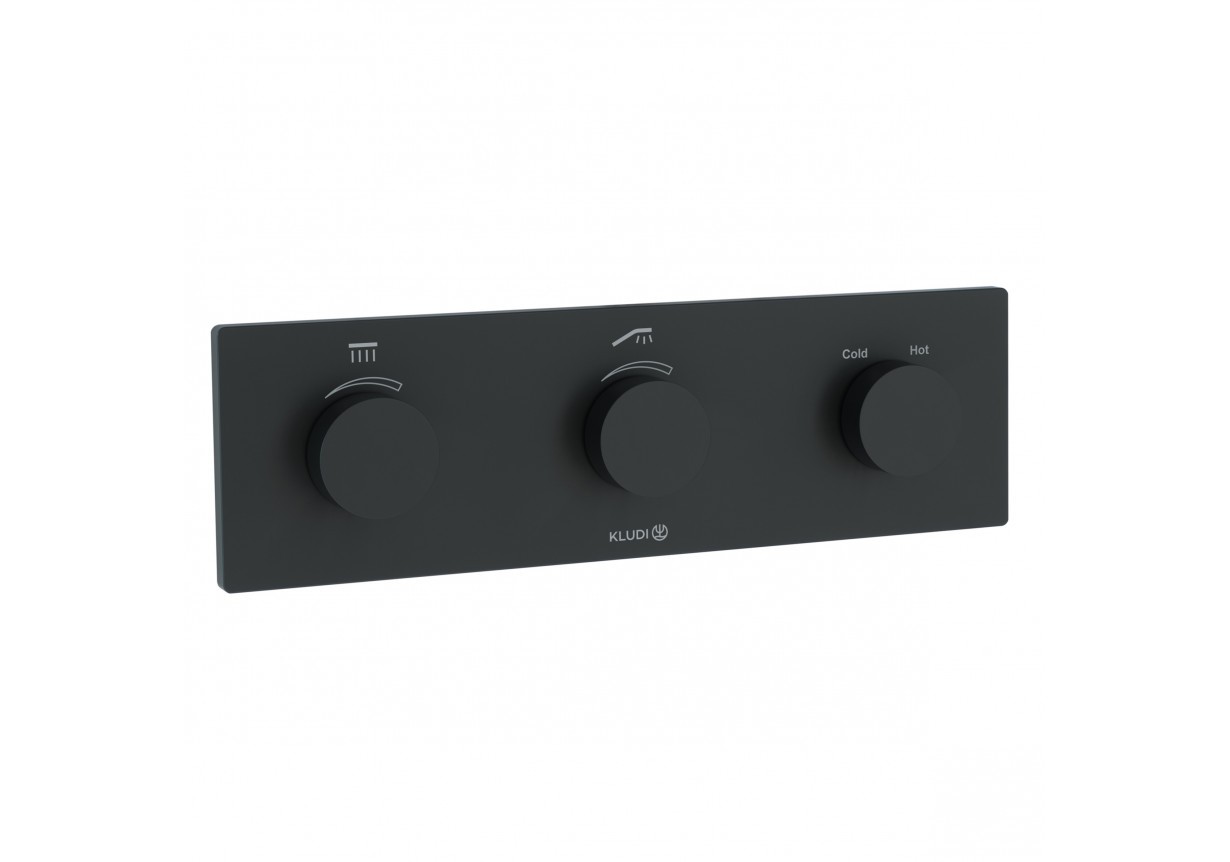

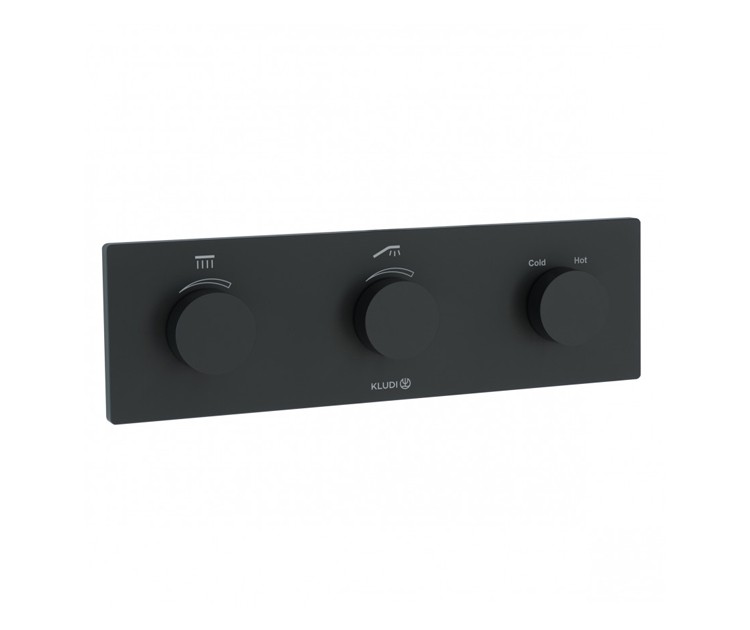

KLUDI-TRONIC | PUSHTRONIC electronic concealed thermostatic fitting

• Sku: 3830039-00

1 x rotating and push button for temperature adjustment

2 x rotating and push buttons for quantity adjustment and on/off

wall fastening

concealed plastic housing

with additional tight gasket

sealing according to DIN18534

Power supply 12 volts (cable from water connection box)

Water connection box IP54

electric power supply via 230 V main adapter

CE marking

with WIFI module

Operation via trim set

with option for APP control

Connection cold water/ hot water G 1/2

Connection of 1 to 2 consumers (G 1/2) possible

simultaneous use of 2 consumers possible

dirt cleaner sieve

protected against back flow

Safety function at 38°C

Temperature limitation 44°C

Thermal disinfection max. 70°C possible

Start temperature individually adjustable

Start- flow rate individually adjustable
